summarize
This machine is suitable for pharmaceutical, chemical, food, magnetic materials, powder and other industries, is a new generation of grinding, vacuum continuous discharge as one of the grinding equipment.
Principle and characteristics

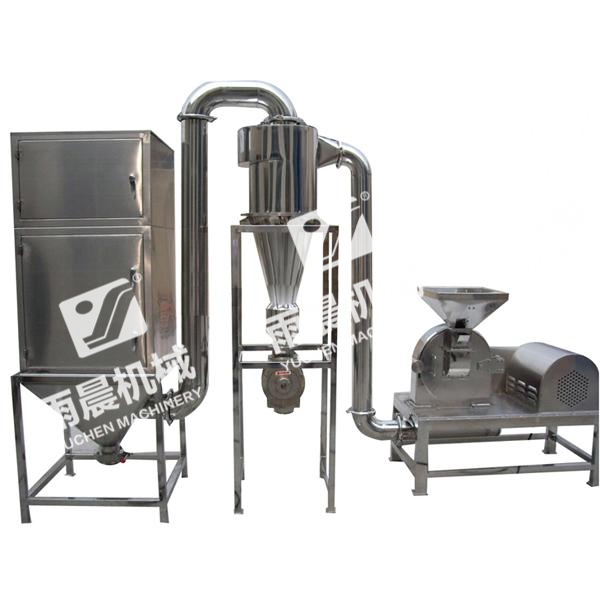

This machine is composed of crusher, cyclone separator, pulse dust box and fan, etc. The machine uses the relative motion between the movable tooth plate and the fixed tooth plate, so that the crushed material is crushed by the tooth impact, friction and the impact between the material, the crushed material by the rotating centrifugal force and the gravity of the fan, into the cyclone separator, and then through the fan discharge, the dust into the pulse dust box, through the filter cylinder and recovery, the finness of the grinding is adjusted by the screen. The whole machine is designed according to GMP standard, all made of stainless steel material, no dust flying in the production process.
Main technical parameters
Model number
Model number
Productive capacity
Spindle speed
Feed size
Fineness of grinding
Pulverizing machine
Vacuum motor
Discharge motor
Overall dimension
weight
20B
60-150
4500
6
20-120
4
2.2
0.75
3000x850x2300
580
30B
100-400
3800
6
20-120
5.5
3
0.75
3000x850x2380
800
40B
300-1000
3400
10
20-120
11
4
0.75
3500x900x2380
120
60B
500-2000
2800
12
20-120
18.5
7.5
1.1
6600x1100x2380
2000
80B
1000-5000
2200
15
20-120
37
11
1.5
7800x1100x2500
3000
100B
2000-8000
1500
15
20-120
55
18.5
2.2
9980x1280x2800
6000
