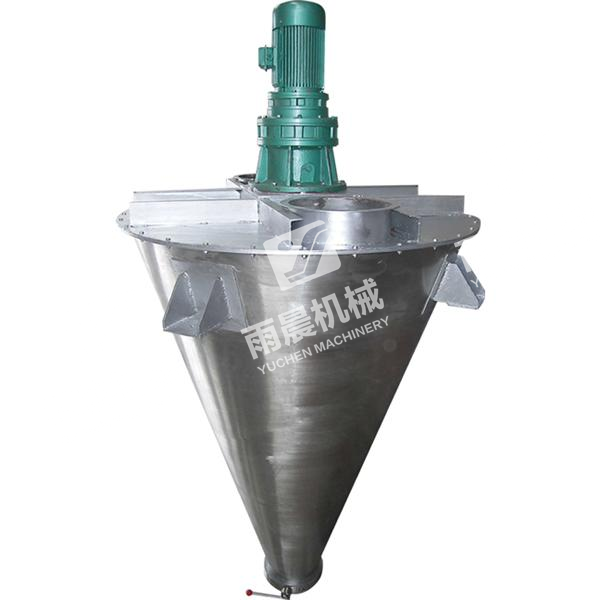

summary

This machine is a new, efficient, and high-precision mixing equipment widely used for mixing various powdered materials in industries such as pharmaceuticals, chemicals, and feed.

Principle and characteristics.

There are four main forms of motion in which the material undergoes composite motion within the cone due to the rotation of the spiral; ① The spiral rotates along the wall, causing the material to move in a circular motion along the conical wall; ② The spiral rotation causes the material to rise along the spiral from the bottom of the cone. ③ The combined motion of the common and self rotation of the spiral causes a portion of the material to be absorbed into the spiral cylindrical surface, and at the same time, a portion of the material inside the spiral cylindrical surface is discharged radially into the cone under the centrifugal force of the spiral rotation. ④ The rising material is lowered by its own gravity, and the four movements generate convective shear and diffusion in the mixer, thereby achieving the goal of rapid and uniform mixing.

Application scope

Applied in chemical, pharmaceutical, pesticide, dye, petroleum, metallurgy, building materials and other powder to powder (solid liquid), powder to liquid (solid liquid) mixing, reaction, drying, cooling. This model can be made with single helix, double helix, and triple helix according to user requirements. Throwing knife and spray assembly can be added to meet special process requirements. There are two types of discharge valves: manual and pneumatic. Special materials can increase the motor power (for heavier loads).

Main technical parameters

model	Full volume	Loading coefficient	Maximum loading weight	Loose density	Material particle size	power	Mixing time	External dimensions	weight
WH-200	0.2	0.6	95	-0.8	20-250	2.2	6-10	∮900x1905	500
WH-500	0.5	0.6	190	-0.8	20-250	2.2	6-10	∮1160x2215	600
WH-1000	1	0.6	380	-0.8	20-250	4	8-10	∮1450x2820	1300
WH-2000	2	0.6	720	-0.8	20-250	5.5	8-10	∮1850x3450	1600
WH-3000	3	0.6	1080	-0.8	20-250	7.5	8-10	∮2050x3780	2500
WH-4000	4	0.6	1400	-0.8	20-250	11	8-10	∮2260x4210	2800
WH-10000	10	0.6	3600	-0.8	20-250	18.5	8-10	∮3080x5810	5600
WH-15000	15	0.6	5400	-0.8	20-250	22	8-10	∮3576x6310	6700
