Purpose:
This machine is mainly used for conveying and feeding solid materials in the pharmaceutical industry. Can be used in conjunction with equipment such as mixers, tablet presses, and glue filling machines. It is widely used in industries such as pharmaceuticals, chemicals, and food.
Principle:

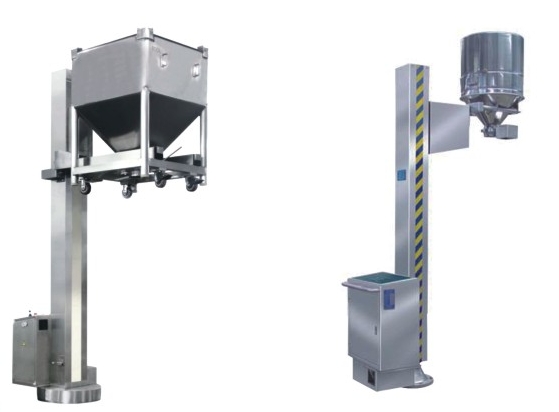

The machine consists of components such as chassis, pillars, and lifting system. When working, first push the hopper containing materials onto the lifting fork of the hopper elevator. Then activate the lifting button, and the hopper performs lifting motion. After the hopper is in place, rotate the chassis and connect it tightly with the feeding equipment. Open the discharge butterfly valve to transfer the material tightly to the next process.
characteristic:
This machine is a new model developed by our company by extensively drawing on advanced foreign technology. Reasonable structure, stable performance, easy operation, no dead corners or exposed screws in the whole machine.
This machine is easy to clean, effectively controls dust and cross contamination, optimizes production processes, and fully complies with GMP requirements for pharmaceutical production.
Main technical parameters:
model
Net load kgkg
Total powerKW
Dimensions (length Lx width Wx height H) mm
Whole machine weightkg
LDJ200
200
2.2
1765x410x4000
500
LDJ300
300
2.2
1965x460x4000
550
LDJ400
400
2.2
1965x460x4000
600
LDJ600
600
2.2
2165x600x4100
650
LDJ800
800
2.2
2165x600x4200
800
LDJ1000
1000
3
2365x750x4200
850
LDJ1200
1200
3
2365x750x4300
950
LDJ1500
1500
3
2365x750x4400
1100
LDJ1800
1800
3
2365x750x4600
1200
LDJ2000
2000
3
2365x750x4800
1300
LDJ2500
2500
3
2610x880x5000
1900
LDJ3000
3000
3
2660x880x5000
2000
